Architectonic Labyrinth

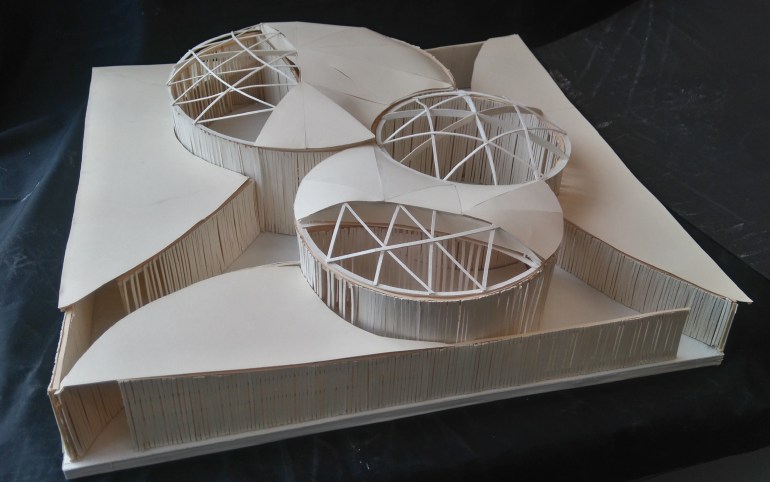

A system of rooms building a sequence of concave and convex / dark and light spaces. Six circles form three repeating sequences. Two of the sequences are each composed of 1. a low entry room, 2. an elevated convex and light room, 3. an elevated concave and dark room, and 4. of a narrow outside space. The third sequence again starts with a low and long entry room but ends directly in a light, perfectly convex space – a circle – in which in contrast to the previous convex rooms the ground is lowered one step instead of elevated. The construction is a wooden frame construction, with vertical bars thinning out towards the openings between the rooms (intersections of circles).

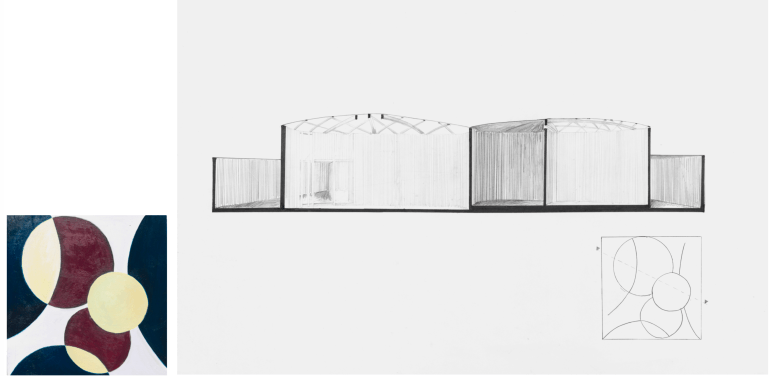

Floor plan (left, oil on wood) and section (hand drawing)
